Beaver 3S 1600 KG Manual- Lever Block- p/n 506160
Rigging, Construction and Mining
The heavy duty Beaver lever blocks are a versatile lifting and tensioning device with some models being widely used in rigging, construction, and mining, applicable models are marked with an asterisks below. Please note: not all models are suitable for all applications. The Beaver 3S industrual chain lever block mechanism and gears are enclosed in a robust all-steel compact shell. The load chain is made of high resistance Grade 80 alloy steel that has a black finish, is heat treated, and is calibrated and marked according to ISO 3077 and ISO 1834. Beaver 'ID' plates and rivets are supplied in stainless steel (a non-conductive material) in order to avoid dangerous sparking, making them ideal for underground mining.
Every Beaver 3S industrial level block is operationally tested to its rated capacity and is supplied with a test certificate, relating to its stamped identification side plate. This lever block complies to AS 1418.2 and approved Colour Coded to Match International Lifting Standard.
| Product code | Rated Capacity | Colour Code | Standard Lift | Test Load | Effort on Lever to Lift Full Load | No. Load Chain Falls | Load Chain Diameter |
| 506080* | 0.8t | White | 1.5m | 11.3kN | 140N | 1 | 6mm x 18mm |
| 506160* | 1.6t | Violet | 1.5m | 22.5kN | 240N | 1 | 8mm x 24mm |
| 506320* | 3.2t | Yellow | 1.5m | 45kN | 320N | 1 | 10mm x 30mm |
| 506630* | 6.3t | Brown | 1.5m | 90kN | 340N | 2 | 10mm x 30mm |
| Product Code | Rated Capacity | A | B | C | D | E | H | Net Weight |
| 506080* | 0.8t | 148mm | 90mm | 136mm | 280mm | 30mm | 325mm | 7kg |
| 506160* | 1.6t | 172mm | 98mm | 160mm | 410mm | 35mm | 380mm | 11kg |
| 506320* | 3.2t | 200mm | 115mm | 180mm | 410mm | 40mm | 480mm | 21kg |
| 506630* | 6.3t | 200mm | 115mm | 235mm | 410mm | 50mm | 620mm | 31kg |
Your may also be interested in following product
$269.00

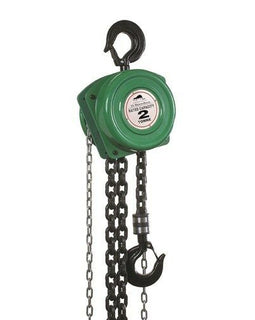

3S 2T Beaver Industrial Manual Chain Block 2 to...
Please note: All items can be collected direct from our store, or If you require the item to ...
Please note: All items can be collected direct from our store, or If you require the item to be freighted to your location, please send us a request for a freight price and we will get back to you with a quote. Beaver chain blocks are designed for use on monorails, jibs fixed installations and for maintenance use. They are to be used for vertical lifts only. If they are side loaded or used horizontally, jamming of the loader chain and damage to the blocks may occur. This product fea...
$11.50 – $15.95

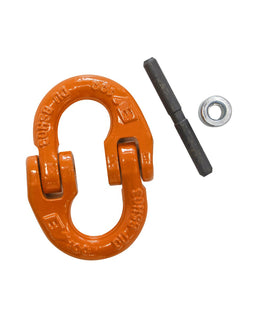

Beaver BV100 G100 Connector Link Either 8mm or ...
