SMC AUTO DRAIN ASSEMBLY P/N AD402-04D-A 1/2 BSP PORT + $11 DELIVERY
DESCRIPTION:
The AD402/600 series auto drain valve automatically discharges drainage. It is highly resistant to dust and corrosion. This series operates in a reliable manner, without requiring human operators. A case guard is provided as standard equipment.
- Auto drain valve
- Highly resistant to dust and corrosion
- Operates reliably without human operator
- Case guard provided as standard equipment
- Made in Japan
Specifications: AD402-A Series Auto Drain Valve

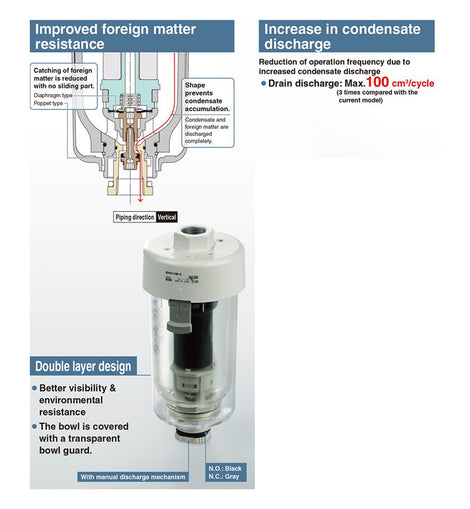

●Higher resistance to foreign matter
●Increase in condensate discharge
Drain discharge: Max.100 cm<sup>3</sup>/cycle (3 times compared with the current model)
●Better environmental resistance: Transparent bowl guard can protect the inner bowl!
●Better visibility: 360°
●Reduced the weight by 22%
●Reduced required maintenance space
●Easier maintenance
One-touch mounting and removal of the bowl is possible without using a tool
●Bowl material can be selected according to the operating environments
●Increase in condensate discharge
Drain discharge: Max.100 cm<sup>3</sup>/cycle (3 times compared with the current model)
●Better environmental resistance: Transparent bowl guard can protect the inner bowl!
●Better visibility: 360°
●Reduced the weight by 22%
●Reduced required maintenance space
●Easier maintenance
One-touch mounting and removal of the bowl is possible without using a tool
●Bowl material can be selected according to the operating environments
| Field | Value | Value Details |
|---|---|---|
| Piping Direction | - | Vertical Piping |
| Thread Type | - | Rc |
| Port Size | 04 | 1/2 |
| Auto Drain Type | D | N.O.(Normally Open),Drain Port Is Open When Pressure Is Not Applied |
| Bowl | - | Polycarbonate Bowl |
| Flow Direction | - | IN Port: Left Side |
| Valve | - | None |
| Pressure Unit | - | Name Plate And Caution Plate For Bowl In SI Units |
