Chicago Pneumatic 90 deg Die grinder P/n CP875 + $11.00 Postage

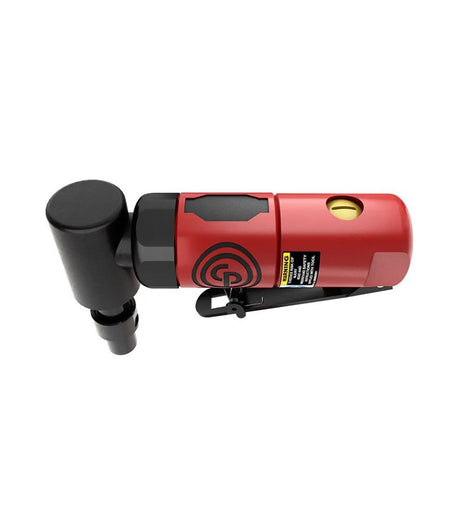

1/4″(6 mm) Pneumatic Die Grinder CP875
The CP875 series is designed for general maintenance in limited spaces. It has an integrated pneumatic regulator with a power of 0.3 hp (220 W). It is a very compact and lightweight tool, ensuring extreme manoeuvrability in high-speed grinding applications.
| TECHNICAL DETAILS | |
|---|---|
| Brand | Chicago Pneumatic |
| Benefits |
|
Technical Specifications
Size & Weight
Length (L): 124 mm
Weight: 0.45 kg
Power & Battery
Max power: 220 W
Speed
- Free Speed: 22500 rpm
- Air consumption at free speed: 10 l/s
Air information
- Air consumption at load: 10 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diameter (16 ft hose length): 0.38 in
- Min hose diameter (5 m hose length): 10 mm
Noise & vibrations
- Sound Power: 112.3 dB(A)
- Uncertainty vibration-K: 1.9 m/s²
- Vibration: 4.4 m/s²
Tightening Strategies
- Angle Type: 90°
Design & Functions
- Collet max capacity: 1/4 (6.4mm)
- Exhaust: Rear
- Governor type: NA
- Main Material type: Aluminium, Composite over-sleeve
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
